Rietberg QUADRO-DV 450 l Mobile Diesel Tank System – Double-walled fuel container, hot-dip galvanized, equipped with a 230 V rotary vane pump and flow meter. 🚛⛽️

Robust Mobile Diesel Tank System for Commercial and Industrial Use ✅

The QUADRO-DV 450 is a double-walled, galvanized mobile tank system with a capacity of 450 liters for diesel, HVO, and e-fuels. Approved as a transportable UN hazardous goods packaging, it offers maximum flexibility for road, rail, inland and maritime shipping, as well as air transport—without recurring inspection obligations, hazardous goods driver licenses, or vehicle labeling. It is ideal for construction, trades, agriculture, and industrial applications.

Benefits at a Glance ✅

• ✅ Transportable and approval-friendly: UN certification allows unrestricted transport and simplifies logistics
• ✅ Safe storage: double-walled construction with permanent, energy-independent vacuum leak monitoring
• ✅ Ready for operation: pre-assembled 230 V rotary vane pump (R50 230) with hose and dispensing nozzle—immediately usable
• ✅ Low maintenance: galvanized construction inside and out for long durability even under harsh conditions
• ✅ Mobile & compact: space-saving dimensions and triple stackability reduce transport and storage costs
• ✅ Secure access: lockable filling and suction lines, as well as lockable storage space

Technical Features & Safety

• ✅ Double-walled fuel container, fully galvanized inside and out
• ✅ Permanent, energy-independent vacuum leak monitoring for enhanced operational safety
• ✅ Mechanical, continuous level indicator for quick on-site overview
• ✅ Ventilation line with shut-off ball valve
• ✅ Spring-supported, reinforced lid with gas springs and 3-point safety lock
• ✅ Closed foot construction with integrated forklift pockets and four crane eyes
• ✅ Triple stackability for space-saving storage
• ✅ Side passage for hose and power cable, holder for dispensing valve
• ✅ Lockable storage space, accessible even when secured

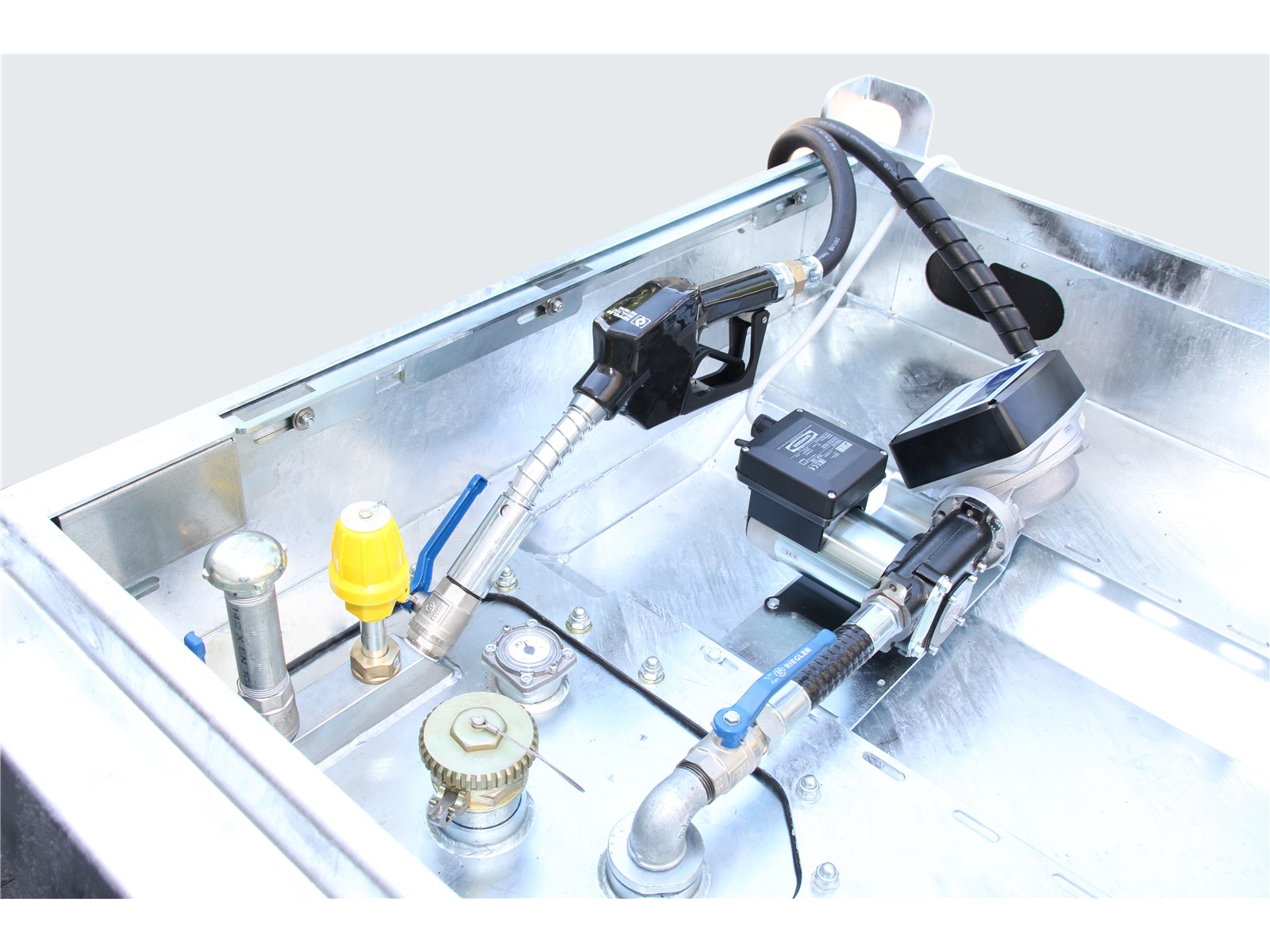

Pump Equipment

This model is equipped with a powerful 230 V rotary vane electric pump (R50 230)—self-priming and with a bypass valve for dry running protection.

• ✅ Delivery rate of approximately 52 l/min
• ✅ Self-priming, with bypass valve for protection
• ✅ 6 m fuel hose with kink protection
• ✅ Angle swivel joint and automatic dispensing nozzle
• ✅ Mechanical counter PZ300 for quantity control
• ✅ Pump pre-installed on the tank

Applications

• ✅ Refueling construction machinery and site vehicles
• ✅ Supplying agricultural machinery and harvesting equipment
• ✅ Refueling emergency generators and mobile power sources
• ✅ Mobile fuel supply for logistics, ports, and industry
• ✅ Storage container with general building authority approval (including water protection areas)

Delivery Scope

• ✅ QUADRO-DV 450 tank system, galvanized, double-walled
• ✅ Pre-assembled 230 V rotary vane pump (R50 230)
• ✅ 6 m fuel hose with kink protection and angle swivel joint
• ✅ Automatic dispensing nozzle
• ✅ Mechanical counter PZ300
• ✅ Lockable filling and suction lines, reinforced lid

Technical Overview

Model Overview

Safety & Approval

• ✅ UN certification as transportable hazardous goods packaging: unrestricted transport on road, rail, inland and maritime shipping, as well as air transport
• ✅ No recurring inspections, hazardous goods driver license, or vehicle labeling required
• ✅ General building authority approval allows use as a storage container (e.g., in water protection areas)
• ✅ Lockable components and robust, galvanized construction minimize theft and environmental risks

Practical Benefits for Your Business

With the QUADRO-DV 450, you receive an immediately usable, legally compliant, and durable solution for mobile refueling. Reduce logistics costs, avoid additional effort due to permits, and benefit from high safety through double-walled construction and leak monitoring. Perfect for construction sites, agricultural operations, fleets, and emergency power supply.

Conclusion ✅

The QUADRO-DV 450 combines thoughtful safety technology, robust construction, and high user comfort in a transportable 450-liter tank solution. For commercial users who need reliable, approval-friendly, and immediately deployable fuel supply, this mobile tank system is a cost-effective and secure investment.
